0~100℃ ORP Probe With NTC10K Temperature Unit For Electroplating And Mining
ORP sensor ASR401N-D10-A , a variety of installation methods are available to meet the needs of various installation occasions: plug-in, flow-through, submerged, submerged and online hot-swappable.
The high temperature electrode can withstand temperatures up to 100 °C, and the electrode provides the anti-fouling characteristics and self-cleaning performance of the electrode.
Specification:
Product Name
| ORP sensor |
| Model | ASR401-VYD05 |
| ORP Range | ±2000mV |
| Reference Electrode | Ag/AgCl |
| Electrolyte | Crystal |
| Detection Heads | Ring-shaped platinum |
| Working Pressure | 0~4 Bar |
| Working TEMP | 0~100℃ |
| Shaft Material | PPS |
| Membrane | Porous Teflon membrane |
| Thread Size | 1 inch NTP(both ends) |
| Dimension | D: 35mm L: 260 mm ( include cleaning cover) |
| Lead Wire | Standard 5m |
| Temperature Unit | Vacant/NTC10K (optional) |
| Application | Industrial sewage |
| Cleaning | A protective cover with its own cleaning interface(Optional) |
Please click the catalog of ORP controller here:
Daruifuno Catalog.pdf
Brief introduction:

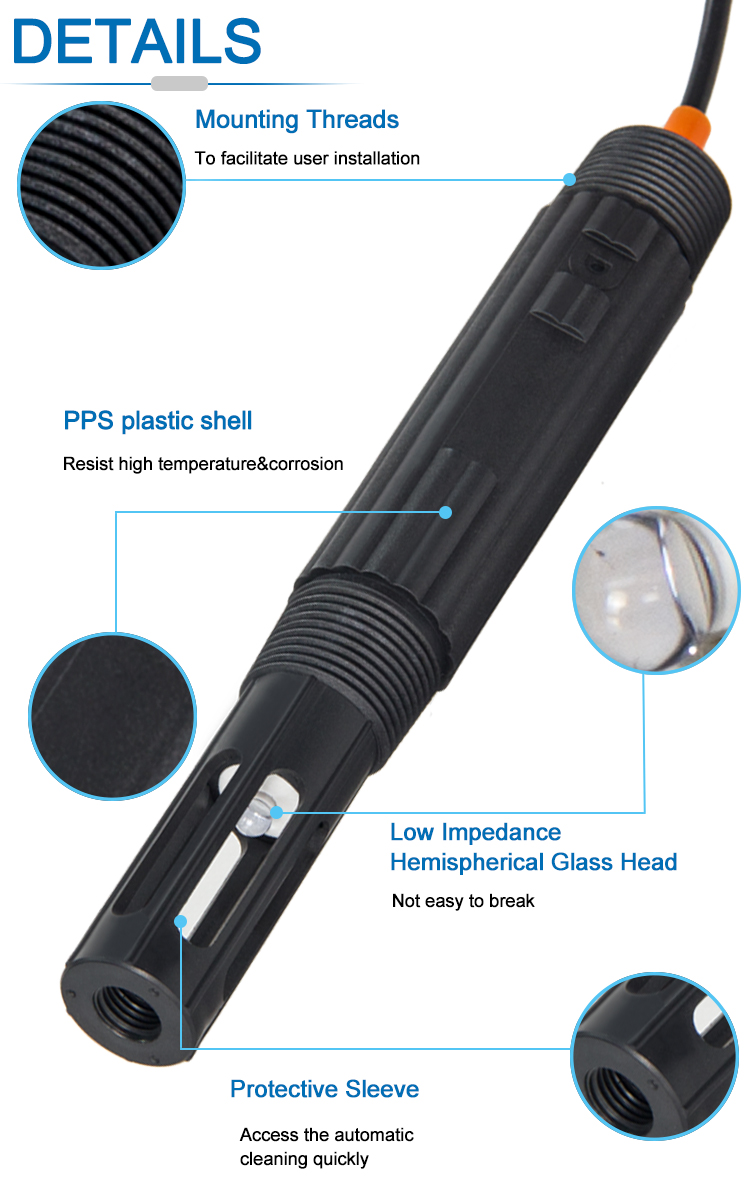

◆ ORP composite electrode, ring-shaped platinum detection head, the body is packaged in high-performance PPS plastic case
◆ Sturdy structure, with installation threads at the beginning and end, easy to install;
◆ The electrode is divided into 2 basic models according to the temperature unit packaging method, which is convenient for users to measure the temperature of the liquid simultaneously;
◆ The electrode is equipped with a protective cover with its own cleaning interface
◆ The reference adopts a large-area annular porous Teflon membrane,
◆ The reference system is a double-salt bridge design, the reference electrode is Ag/AgCl, and the reference is filled with saturated
Aplication:
Water treatment monitoring
Drinking water,surface water,water quality analyze,ground water,ect.
Industrial process monitoring and dosing control
Chemical,petroleum,paper,food and medicine,PCB manufacturing,etc.
FAQ
1. Does ORP measurement require temperature compensation?
A: ORP measurement is not temperature controlled, so the ORP sensor does not require temperature compensation.
2. How do we choose the ORP electrode when the oxidation level is high?
A: In occasions where the oxidation level is high, that is, the ORP value is high, platinum electrodes are recommended, otherwise gold electrodes are recommended. ORP measurements usually use the above two inert materials as indicator electrodes.
3. What is the wire length of the ORP electrode?
A: The lead wire of this electrode is 5m by default, other lengths need to be customized, contact our customer service, the price will vary with the change of length.
4. What should ORP electrodes be used with?
A: ORP electrode cannot be used alone, it must be connected with PH/ORP controller. We have a matching controller with a suitable price, and you can choose.
5: Are you trading company or manufacturer ?
A: We are a manufacturer, committed to producing high accuracy, long-term stability, cost-efficient online, portable(single-parameter and multi-parameter), water analysis instruments
6: What's your quality control system?
A: All of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE .
7: What is your shipping method?
A: Small orders are delivered with DHL, FedEx, TNT, UPS , EMS. Large orders are recommended to ship by sea.
8: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
9: How long will you give me the reply?
A: We can support you 24Hours online service via email, skype, what’sapp, facebook etc within 1 hour.
NTC10K Temperature Compensation Industrial Online ORP Electrode
