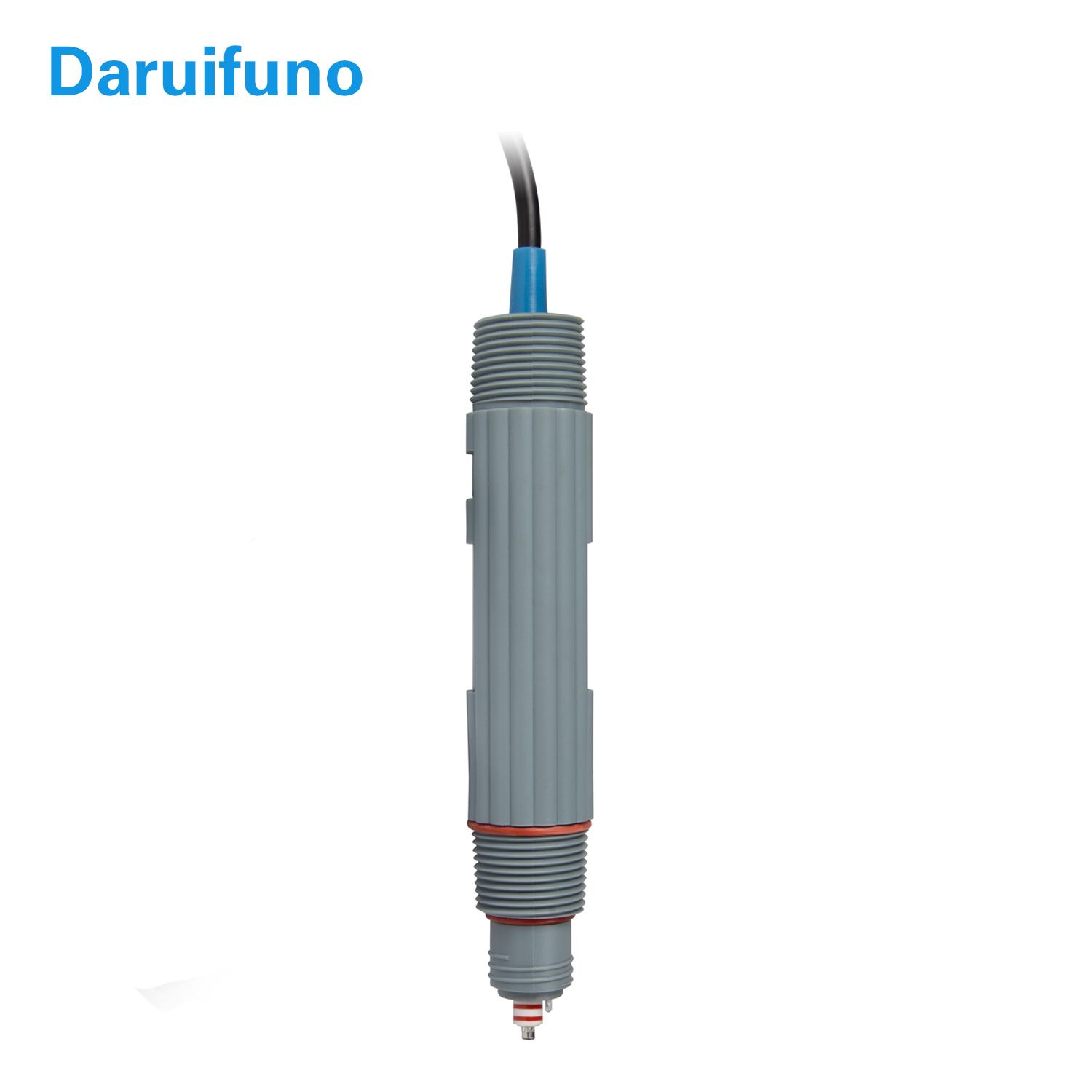

RS485 Interface ORP Electrode For Wastewater Treatment Detecting
ORP digital electrode, without instrument, can be directly connected to computer, PLC and other equipment with RS485/4-20mA signal interface for data collection and maintenance; it is convenient for users to integrate the sensor into the host computer system and the Internet of Things and other industrial control environments.
The sensor can be set through RS485 communication, such as slave address and baud rate, online calibration, factory reset, 4-20mA output corresponding range (4-20mA is optional), proportional coefficient and incremental compensation.
Specification:
| Product Name | PH sensor electrode |
| Product Model | DRH790-YD01A |
| Brand Name | Daruifuno |
| Electrical Isolation | With |
| Signal Type | Digital(RS485 interface) |
| Measuring Range | ORP: ±2000mV TEMP: 0~50℃ |
| Resolution | 1mV/0.1℃ |
| Accuracy | ±2mV |
| Temperature Compensation | Automatic, built-in temperature unit |
| Calibration Method | Zero position/slope/deviation |
| Work Pressure | 0~2Bar |
| Operating Temperature | 0.0~50.0℃ |
| Shell Material | PPS |
| Dimension | Diameter: 35mm Total length: 260 mm ( include cleaning cover) |
| Installation Size | 1"NPT at both ends of the installation thread;
insertion depth 100 (including cleaning plug 115) |
| Protection Grade | IP68 |
Please click the user manual of RS485 ORP sensor here:
DRH79 User Manual.pdf
Features＆ Advantages
● All-in-one package, can be used with the online transmitters, DTU, and portable instruments
● RS485 interface, Modbus RTU, support access to standard industrial control system
● The protection grade is IP68, can work continuously and stably under water for a long time
● Internal storage of calibration data, support offline calibration, plug and play on site
● Equipped with a protective cover with its own cleaning interface, and the user can quickly access the automatic cleaning system;
Aplication:
Water treatment monitoring
Drinking water,surface water,water quality analyze,ground water,ect.
Industrial process monitoring and dosing control
Chemical,petroleum,paper,food and medicine,PCB manufacturing,etc.
FAQ
1.Does ORP measurement require temperature compensation?
A: ORP measurement is not temperature controlled, so the ORP sensor does not require temperature compensation. But this digital ORP electrode has a built-in temperature unit and it can detect and compensate the temperature automatically.
2. How do we choose the ORP electrode when the oxidation level is high?
A: In occasions where the oxidation level is high, that is, the ORP value is high, platinum electrodes are recommended, otherwise gold electrodes are recommended. ORP measurements usually use the above two inert materials as indicator electrodes.
3. What is the wire length of the ORP electrode?
A: The lead wire of this electrode is 5m by default, other lengths need to be customized, contact our customer service, the price will vary with the change of length.
4. What should ORP electrodes be used with?
A: ORP electrode cannot be used alone, it must be connected with PH/ORP controller. We have a matching controller with a suitable price, and you can choose.
5.What is the advantage of digital OPR sensor?
A: The digital ORP sensor has RS485 interface, Modbus RTU, support access to standard industrial control system.
